Wireshark

---

Wireshark is a packet sniffer and protocol analyzer for real-time network monitoring capable of intercepting traffic from a wide variety of wired and wireless sources.

• previously called Ethereal
• GUI-based
• open-source
• there is a CLI version called tshark
• contains many filtering, sorting, and analysis tools
• Ideal for diagnosing network issues or analyzing security incidents
• capable of parsing the headers and payloads of hundreds of network protocols
• https://www.wireshark.org/

Usage

• Choose an interface to listen on

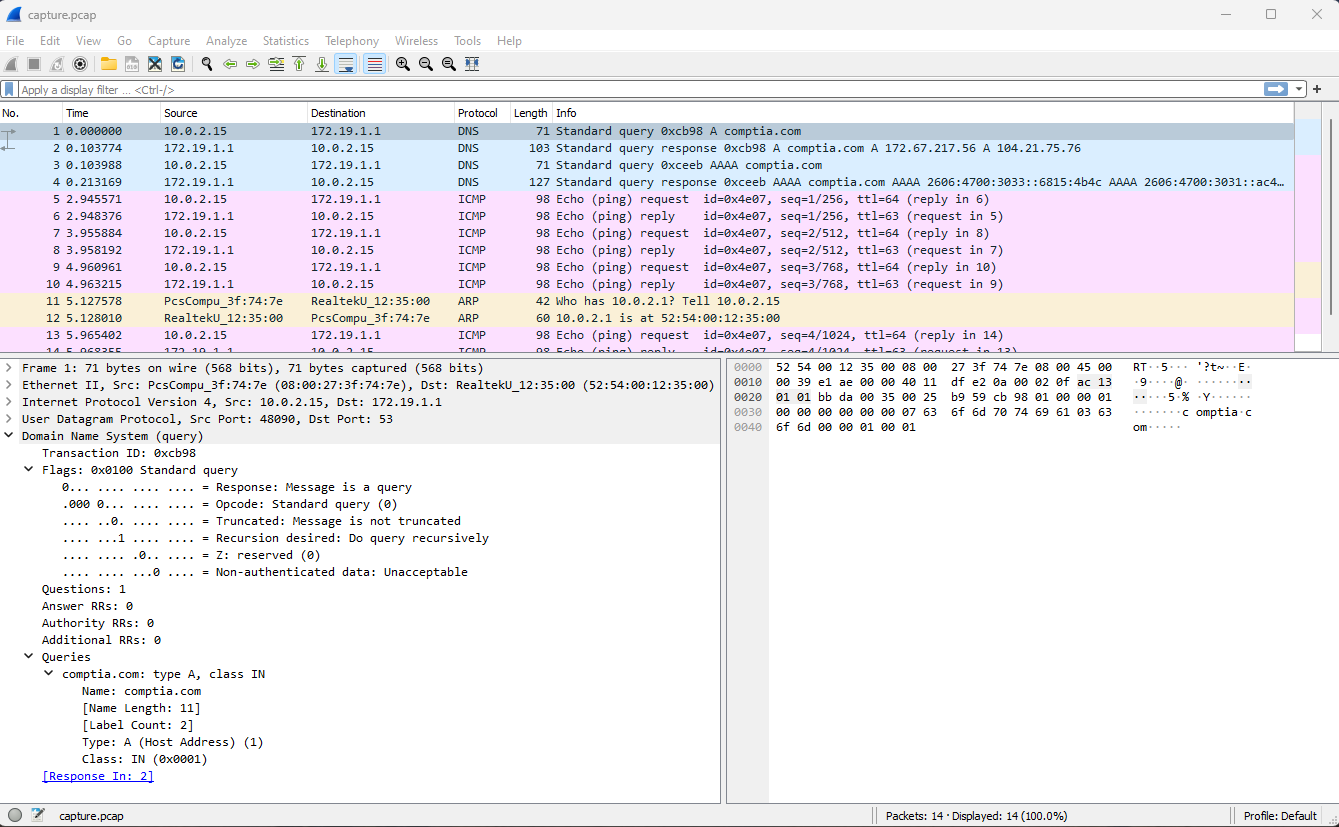

• output is displayed in a three-pane view
  • top pane shows each frame
  • bottom-left pane shows the fields from the currently selected pane
  • bottom-right pane shows the raw data from the frame in hex and ASCII
• can apply a capture filter or filter the output using the same expression syntax as tcpdump
• can save output to a .pcap file
• can load a .pcap file for analysis
• supports display filters that can be applied to a live capture or capture file
• can adjust coloring rules
  • control the row shading and font color for each frame
• Follow TCP Stream context command reconstructs the packet contents for a TCP session

Info

he PCAP file format has some limitations, which has led to the development of PCAP Next Generation (PCAPNG).

• Wireshark now uses PCAPNG by default
• tcpdump can process PCAPNG too
