TLS 1.3 Protocols

---

TLS is composed of 4 subprotocols:

• handshake protocol
  • client and webserver negotiate the version of TLS and the cryptographic algorithms to use
  • establish a shared secret for symmetric encryption
  • authenticate each other using public keys
• record protocol
  • client and server encrypt and decrypt messages using the shared key and verify the integrity of received data
• alert protocol
  • handles errors
• 0-RTT protocol
  • enables the transmission of data without authentication when the client and server have pre-shared keys

Handshake Protocol

• client and server exchange Hello messages in order to:
  • select the cryptographic algorithm to use
  • establish shared keying material
  • authenticate the server to the client
    • optionally, the client to the server
• first messages in TLS are ClientHello and ServerHello
  • have same structure
    • TLS versions
    • Random nonce value
    • Cipher suite
    • Extensions
    • Options (legacy compatibility)
  • any TLS extension contains a list of items that are ordered according to the sender’s preferences
    • a ClientHello messages with extensions indicates items supported by the client
    • a ServerHello message extension indicates the item that will be used by the server of the options
    • e.g. client includes a list of ciphers, server includes the cipher it will use
    • most used extensions:
      • supported groups
        • indicates the supported mathematical groups (i.e. finite fields and elliptic curves)
      • Key share
        • indicates the supported key exchange protocols
      • pre-shared key extension
        • indicates the pre-shared keys known to the client and server before starting the current handshake
      • signature algorithms
        • indicates the supported signature algorithms
      • certificate authorities
        • indicates which certificate authorities are supported
        • used to indicate known trust anchors
      • early data indication
        • allows the client to send application data encrypted with the pre-shared symmetric key, without performing the authentication

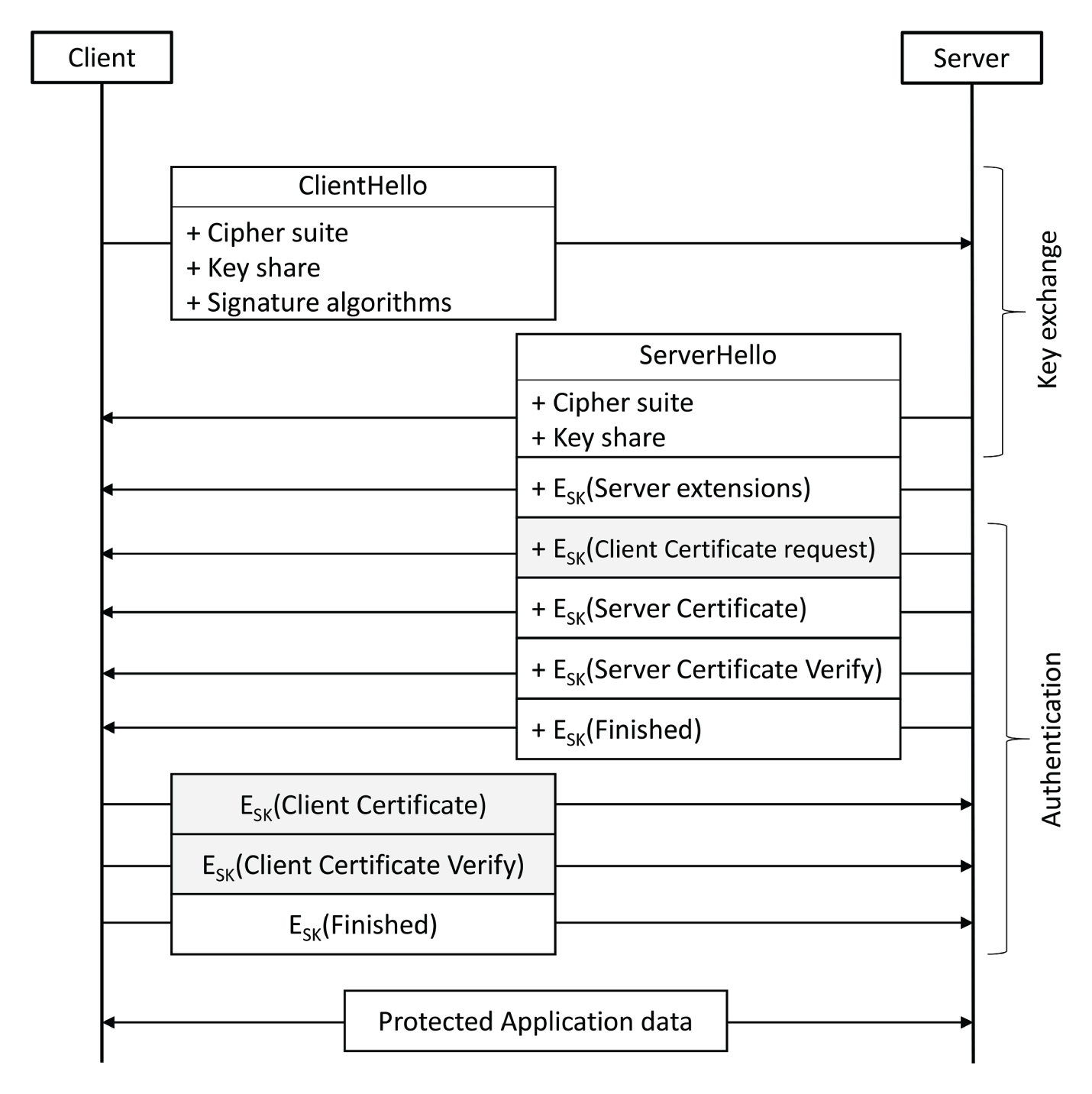

Full TLS Handshake

• gray box means that the authentication of the client is not mandatory
• Hello message may be transmitted in a single record or split into multiple

Record Protocol

Record protocol is used to provide confidentiality and integrity of transmitted data.

• used to protect handshake, application data, and alert messages
• how it works
  • record layer fragments data into records with a maximum length of bytes
  • a record is encrypted and decrypted with an AEAD (Authenticated encryption with Associated data) algorithm
    • agreed upon by client and server
  • nonce is included in each encrypted record to prevent some attacks
• maximum of full-length records may be encrypted on a given connection using AES-GCM
  • to keep the security of encryption below an acceptable margin

Alert Protocol

Alert protocol provides indication regarding errors and incapacities to establish or maintain a secure connection between parties.

• common alerts:
  • not supported TLS version, Handshake failure, Uknown pre-shared key identifier
  • Bad certificate, Unsupported certificate, Expired certificate, Revoked certificate, Unknown CA
  • Bad record MAC, Record exceeding the limit size
