Internet Protocol Security (IPSec)

---

Internet Protocol Security (IPSec) is a protocol that authenticates hosts and encrypts packets operating at the Network layer of the OSI model.

• used with other protocols to provide connection security
• uses:
  • secure IPv4 and/or IPv6 communications on local networks
  • remote access VPN protocol
  • increasingly used as a standalone VPN protocol
• operates at the Network layer
  • means that
    • can be implemented without having to configure specific application support
    • incurs less packet overhead

Protocols

• two core protocols
  • can be applied singly or together
  • Authentication Header (AH)
    • IPSec protocol that provides authentication for the origin of transmitted data as well as integrity and protection against replay attacks
    • Provides a mechanism for authentication-only, not encryption
      • payload is not encrypted
      • does not provide confidentiality
    • Performs a cryptographic hash on the whole packet
      • including the IP header and a shared secret key
      • adds this value in its header as an Integrity Check Value (ICV)
    • recipient performs the same function on the packet to verify packet has not been modified
    • protects against replay attacks by using a sequence number in the AH header
  • Encapsulating Security Payload (ESP)
    • Provides a mechanism for both authentication and encryption and protection against replay attacks
    • uses the same AH algorithms for providing integrity and authentication
      • only authenticates the IP payload
    • used to encrypt the payload
      • rather than simply calculating an ICV
    • attaches three fields to the packet:
      • header
      • trailer
        • provides padding for the cryptographic function
      • Integrity Check Value
        • ESP excludes the IP header when calculating the ICV
        • unlike AH
    • can use one or both algorithms for:
      • confidentiality (symmetric cipher)
      • hash function (authentication/integrity)
• Internet Key Exchange (IKE)

Modes

• Transport Mode

  • used to secure communications between hosts on a private network (an end-to-end implementation)

  • commonly used for client-to-site VPN connections

  • NAT is not supported in transport mode

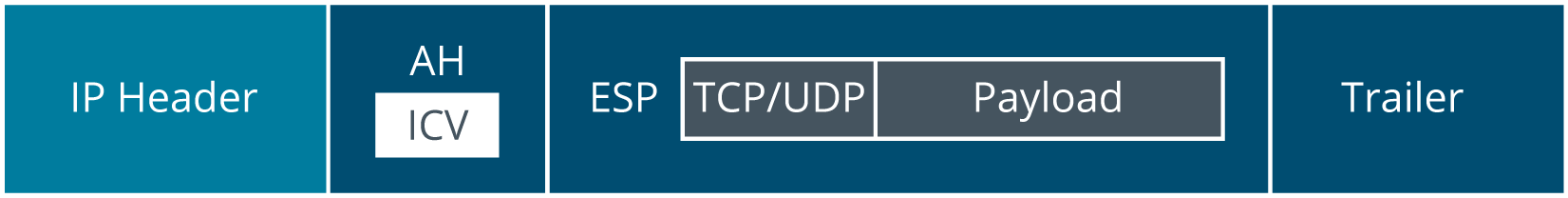

  • if ESP is applied in transport mode

    • Only encrypts the payload (data) and ESP trailer
      • IP header for each packet is not encrypted

  • if AH is used in transport mode

    • can provide integrity for the IP header

  • requires more complex hardware configuration on backend and a software client



• Tunnel Mode

  • used for communications between VPN gateways across an insecure network (creating a VPN)
  • referred to as a router implementation
  • commonly used for site-to-site VPNs
  • NAT is supported with the tunnel mode
  • IP packet is authenticated, encrypted, and encapsulated in a tunneling protocol
    • commonly uses Layer 2 Tunneling Protocol (L2TP)

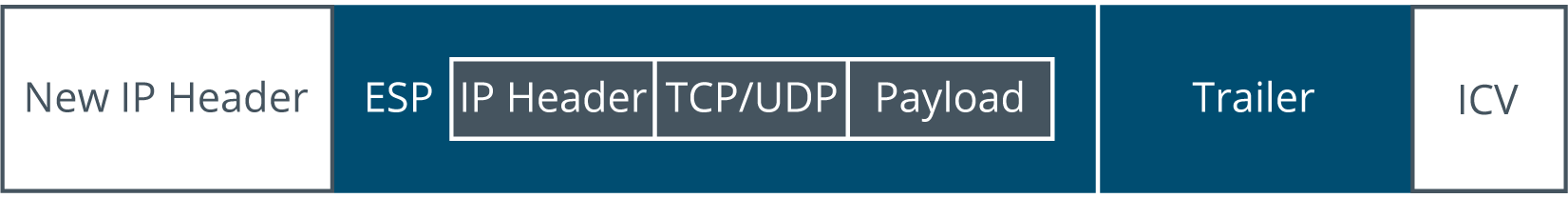

  • With ESP
    • entire IP packet (header and payload) is encrypted and encapsulated as a datagram with a new IP header
    • this protects the internal routing information
      • by encrypting the IP header of the original packet
  • AH has no real use case in tunnel mode
    • confidentiality is usually required



Info

• The principles underlying IPSec are the same for IPv4 and IPv6, but the header formats are different
  • IPSec makes use of extension headers in IPv6
  • IPv4,
    • ESP and AH are allocated new IP protocol numbers (50 and 51)
    • and either modify the original IP header or encapsulate the original packet
      • depending on whether transport or tunnel mode is used
