Client-to-Site VPNs

---

Client-to-site VPNs allow employees to securely connect to an organization’s internal network remotely through the use of VPN client software installed on their machine.

• aka remote access VPN
• In a client-to-site topology
  • VPN client connects over the public network to a VPN gateway
    • a VPN-enabled router
    • positioned on the edge of the local network
      • typically in a screened subnet
• Client-to-site is the “telecommuter” model
  • allows homeworkers and employees working in the field to connect to the corporate network
• can be configured using a number of protocols
  • SSL/TLS VPN solution uses certificates to establish the secure tunnel
    • e.g.,
      • Microsoft’s Secure Socket Tunneling Protocol (SSTP)
      • Microsofts’s Point-to-Point Tunneling Protocol (PPTP)
        • deprecated due to security flaws
      • Cisco’s Layer 2 Tunneling Procotol (L2TP)
        • used in conjunction with IPSec
    • require client software to operate

Managing Client Connections

• When a client connected to a remote access VPN tries to access other sites on the Internet, there are two ways to manage the connection:

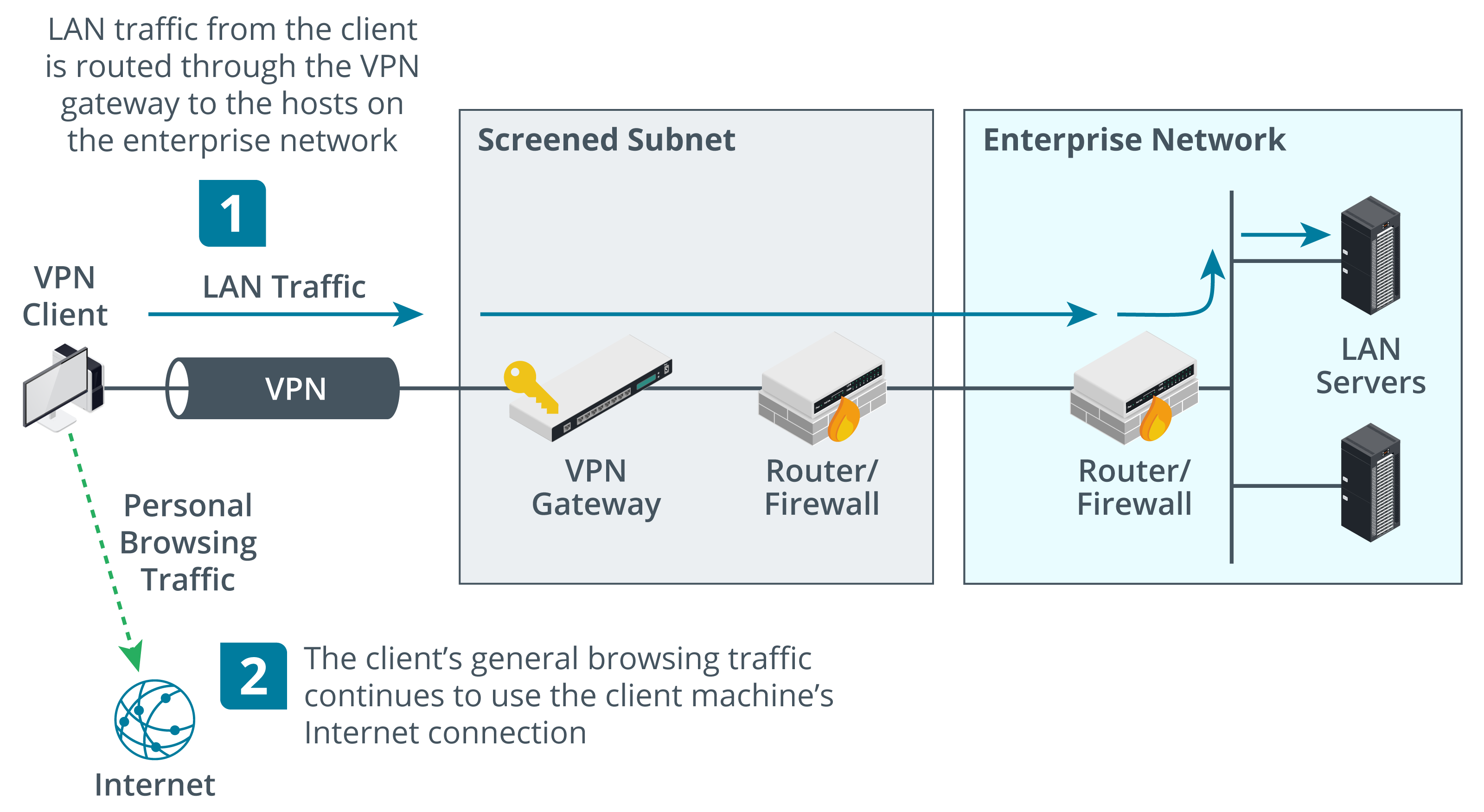

  • Split tunnel

    • VPN configuration where only traffic for the private network is routed via the VPN gateway
    • client accesses the Internet directly
      • using its ISP-managed IP configuration, routers, and DNS servers

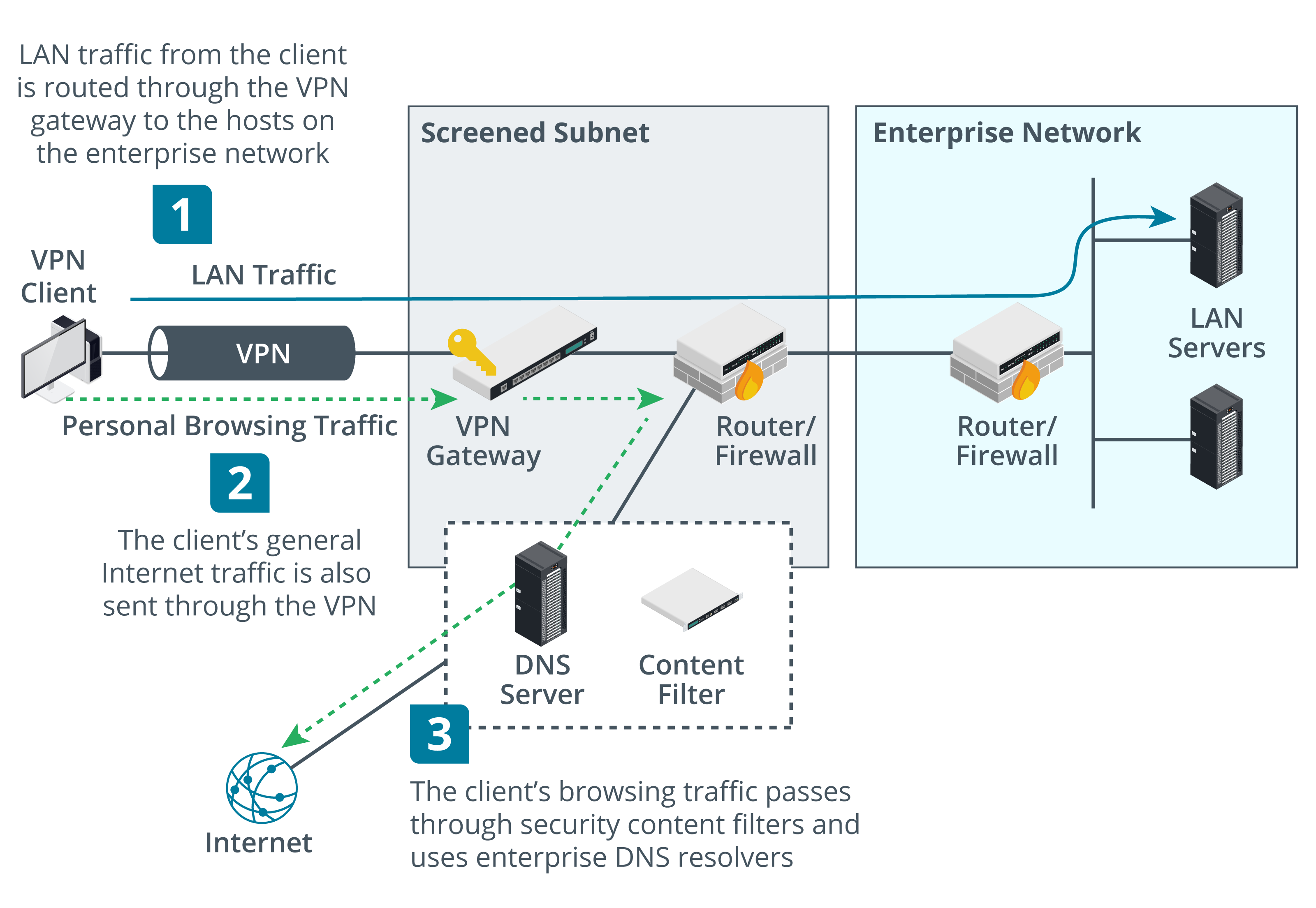

  • Full tunnel

    • VPN configuration where all traffic is routed via the VPN gateway
    • Internet access is mediated by the corporate network
      • will alter the client’s IP address and DNS servers
      • may use a proxy
    • offers better security
      • but
        • NAT and DNS operations may cause problems with some websites
          • especially cloud services
        • more data is channeled over the link
          • can have higher latency
