VLAN Routing

  • traffic between VLANs must be routed
  • various ways to do this:
    • Subinterfaces
    • Switch virtual interfaces (SVI)

Subinterfaces

  • deploy a router with a single interface (one-armed router or router on a stick) connected to a trunk port on the switch
  • the trunk port carries all the VLAN-to-VLAN traffic that must be routed
  • router’s physical interface is configured with multiple subinterfaces
    • each one is configured with a specific VLAN ID and IP address
    • subinterfaces act as the default gateway for its VLAN/subnet
    • router forwards inter-VLAN traffic between subinterfaces

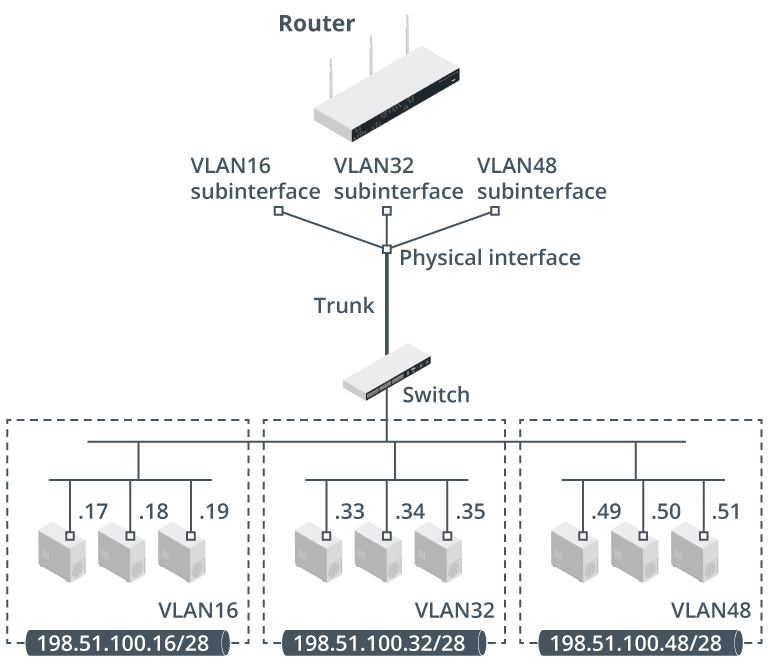

Configuring Subinterfaces for VLANs

VLAN 16 on interface G0:

  • interface G0.16
  • encapsulation dot1Q 16
  • ip address 198.51.100.30 255.255.255.0

Tip

  • choice of default gateway is by convention
  • many orgs use the first available host address
  • in above example, we’re using the last available address
    • to focus attention on how many address are available in the subnet
  • key is to apply the convention consistently across the network

Info

  • it’s not necessary for a router to have a single physical interface
  • this is just a conventional example
  • could have multiple physical interfaces, each with subinterfaces connected to different switches
  • could also have a WAN interface

Switch Virtual Interfaces (SVI)

  • Passing traffic between a router appliance and the switch over a trunk link is relatively inefficient
    • does not scale well to tens of VLANs
  • enterprise networks usually deploy layer 3 switches in the core and distribution layers
    • layer 3 switch is optimized for routing between VLANs
      • can use static and dynamic routing to identify which VLAN a packet with a given destination IP address should be forwarded to
  • with layer 3 switches, each VLAN can be assigned a switch virtual interface (SVI) to act as the default gateway

SVI Configuration

For the topology shown above, but configured with SVI instead:

  • rather than router + layer 2 switch, using layer 3 instead
  • interface VLAN16
  • ip address 198.51.100.30 255.255.255.0
  • hosts in the VLAN would be configured with 198.51.100.30 as the default gateway

Important

  • layer 3 switch could also be configured with subinterfaces
  • any port on a layer 3 switch can be designated as routed rather than switched using the no switchport command
  • to distinguish the concepts independently of device types,
    • an SVI is bound to a VLAN and doesn’t require a physical interface
      • like configuring a virtual router for the virtual LAN
    • a subinterface is bound to a physical interface and then allocated a VLAN ID
