TCP Handshake and Teardown

---

• a TCP connection is typically established to transfer a single file
  • a client session for a webpage (HTTP) might involve multiple TCP connections being opened with the server
    • managed using handshake transactions
      • use TCP flags

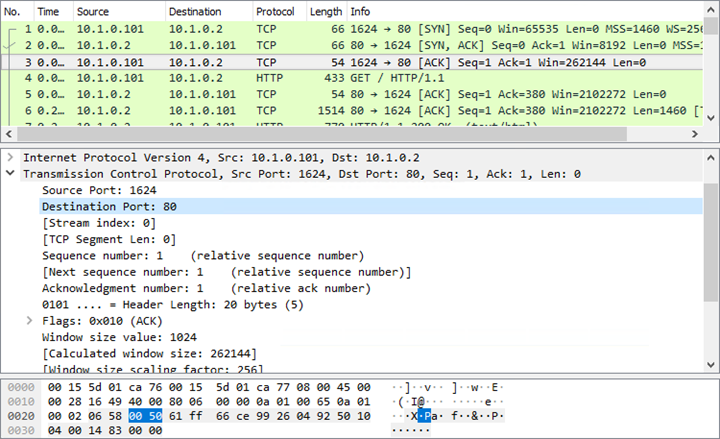

TCP Three-Way Handshake

• A connection is established using a three-way handshake:

1. client sends a segment with the SYN flag to the server
   • has a randomly generated sequence number
   • client enters SYN-SENT state
2. server, currently in the LISTEN state, responds with a SYN/ACK segment
   • contains its own randomly generated sequence number
   • server enters SYN-RECEIVED state
3. client responds with an ACK segment
   • client assumes the connection is established
4. server opens a connection with the client and enters the ESTABLISHED state

Info

• servers can support thousands or millions of TCP connections simultaneously

• sending machine expects regular acknowledgements for segments it sends
  • if a period elapses without an acknowledgement, it assumes the info did not arrive and automatically resends it
  • this overhead makes the system relatively slow
  • connection-oriented transmission is suitable when:
    • reliability and data integrity are important

TCP Connection Teardown

• There are functions for:
  • resetting a connection
  • keeping a connection alive if no actual data is being transmitted (instead of timing out)
• To close a connection, called a teardown:
  1. client sends a FIN segment to the server and enters FIN-WAIT1 state
  2. server responds with an ACK segment and enters the CLOSE-WAIT state
     • client receives the ACK segment and enters the FIN-WAIT2 state
  3. server sends its own FIN segment to the client and goes to the LAST-ACK state
  4. client responds with an ACK and enters the TIME-WAIT state
     • after defined period, client closes its connection
  5. server closes the connection when it receives the ACK from the client
• some implementations use one less step by combining the FIN and ACK responses into a single segment operation
• host can end a session abruptly using a reset (RST) segment
  • not typical behavior, may need to be investigated
    • server or security appliance might refuse connections using RST
    • client or server application might be faulty
    • could be suspicious scanning activity ongoing
