Software-Defined Networking (SDN)

---

• Cloud services require
  • rapid provisioning and deprovisioning of server instances and networks
  • use of overlay networks to establish logical point to point links quickly and reliably
• these components must be fully accessible to scripting (IaC)

Software-defined networking (SDN) is APIs and compatible hardware/virtual appliances allowing for programmable network appliances and systems.

• is a model for how these processes can be used to provision and deprovision networks
  • especially important for cloud services
• abstracts physical network devices, replacing them with a virtual control plane that makes all decisions regarding traffic management
• SDN application can be used to define policy decisions on the control plane
  • they are then implemented on the data plane by a network controller application
    • interfaces with the network devices using APIs
• used to manage and provision physical and virtual network appliances
  • fully automated
• extend the functionality and control provided by network segmentation by providing greater flexibility
  • makes implementing networks containing only a single device manageable
• allows for building cloud-based networks

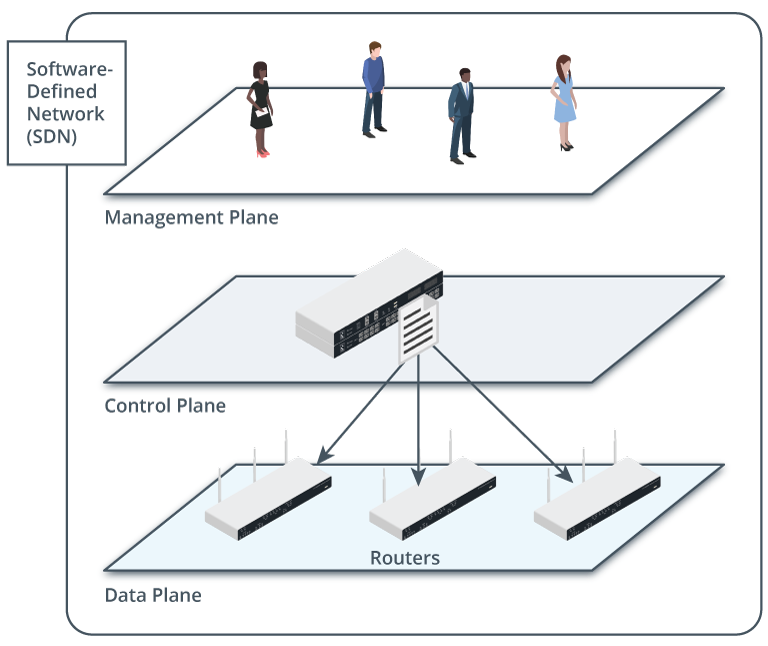

Network Functions

• With a vast array of devices to manage and configure, it is effective to use an abstracted model to define how the network operates
• network functions can be divided into three “planes”:
  • Control plane
    • makes decisions about how traffic should be prioritized, secured, and where it should be switched
  • Data plane
    • handles the switching and routing of traffic and imposition of security access controls (ACLs)
  • Management plane
    • monitors traffic conditions and network status
• a SDN application can be used to define policy decisions on the control plane
  • decisions are then implemented on the data plane by a network controller application
    • interfaces with the network devices using APIs

Network Functions Virtualization (NVF) is provisioning virtual network appliances, such as switches, routers, and firewalls, via VMs and containers.

Properties of SDN

• central policy management
  • single “source of truth” for how the network should operate
  • business and security rules are automatically converted into device configuration states
  • central policy management but distributed policy enforcement
  • status reporting ensures that “single pane of glass” monitoring and oversight is available to administrators
• transport agnostic
  • overlay network can make use of any available forwarding fabric
    • whether Ethernet, Wi-Fi, 4G/5G cellular, leased line, or satellite
  • underlying network fabric is automatically configured to establish the logical network link
• zero-touch provisioning
  • When new nodes are deployed to the network,
    • use automation to achieve the desired configuration
    • rather than needing to be manually configured by a technician
  • if network policies change,
    • nodes are reconfigured automatically
• application aware
  • Forwarding nodes can identify types of traffic
    • e.g., voice, video, IoT
  • can reserve capacity for these applications to ensure:
    • sufficient bandwidth
    • low latency
    • lossless transfers

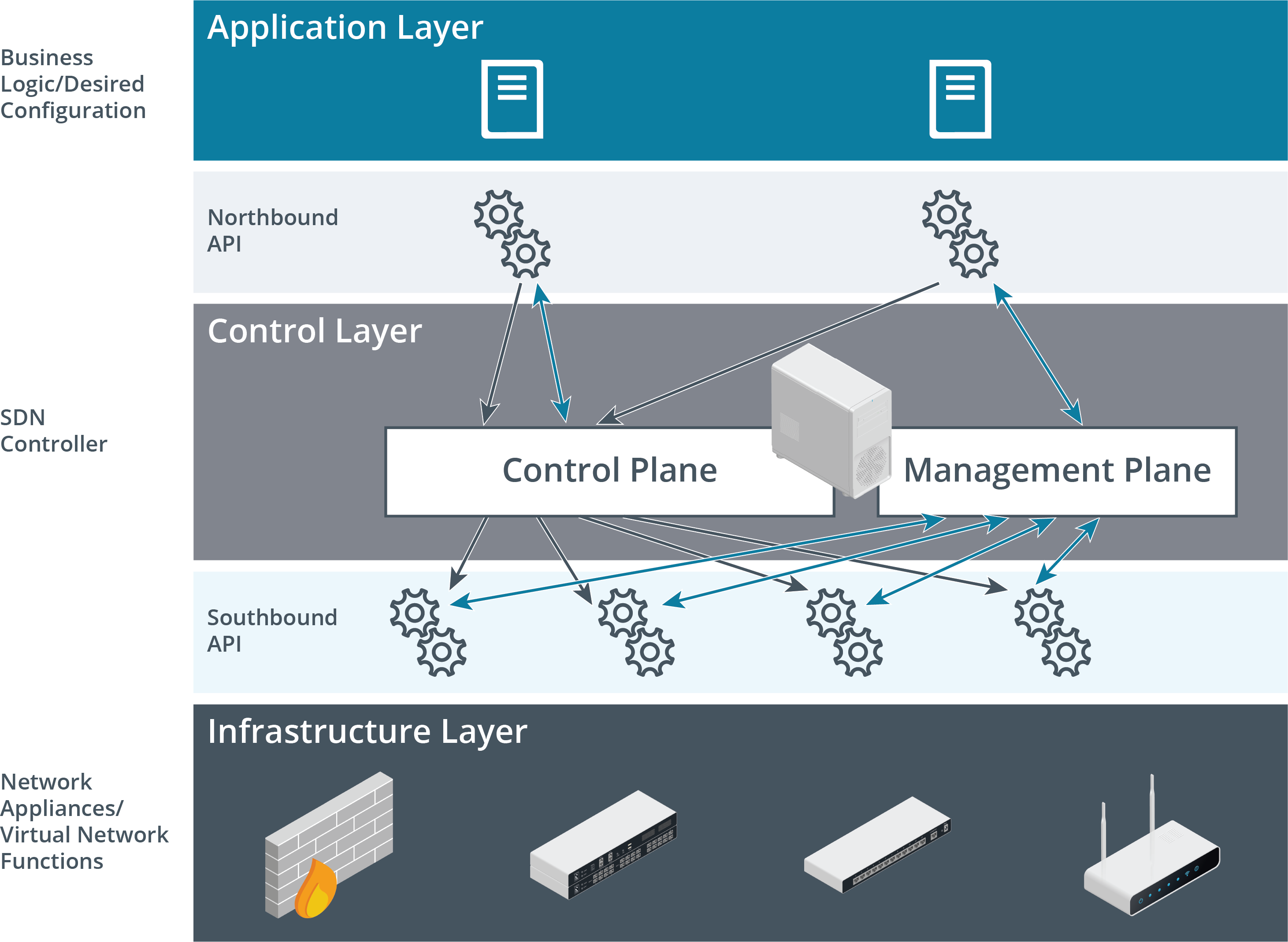

SDN Architecture

• SDN model defined by IETF
  • network functions are divided into three layers:
    • application layer (top layer)
      • applies business logic to make decisions about:
        • how traffic should be prioritized and secured
        • where it should be switched
      • defines policies such as:
        • segmentation
        • ACLs
        • traffic priortization
    • infrastructure layer (bottom layer)
      • contains the devices (physical or virtual) that:
        • handle the actual forwarding (switching and routing) of traffic
        • imposition of ACLs and other policy configurations for security
    • control layer (middle layer)
      • principal innovation of SDN
      • sits between the application and infrastructure layers
      • functions of the control plane are implemented by a virtual device referred to as the SDN controller
  • Each layer exposes an API that can be automated by scripts that call functions in the layer above or below
  • interface between SDN applications and the SDN controller is described as the service interface or as the northbound API
    • between the SDN controller and infrastructure devices is the southbound API
• this architecture reduces risks with managing large and complex network infrastructure
  • also allows for fully automated provisioning of network links, appliances, and servers

Management Plane

• In IETF’s SDN model,
  • are separate forwarding (data plane) and operational planes at the infrastructure level
    • operational plane implements device state
      • e.g., CPU and memory utilization
  • management plane sits at same level as control plane to interface with operational plane
    • used to implement monitoring of traffic conditions and network status
