Network Time Protocol (NTP)

---

• many applications on networks require hosts to be synchronized to the same time
  • e.g., authentication/auditing/logging mechanisms, scheduling applications, backup software
• Network Time Protocol (NTP) enables synchronization of time-dependent applications
  • works over UDP port 123
  • capable of millisecond precision

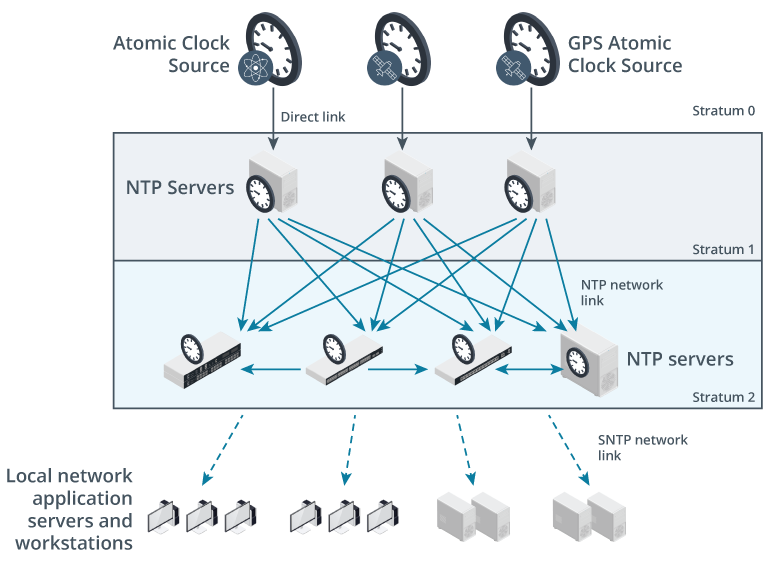

  • top-level NTP servers (stratum 1) obtain the Coordinated Universal Time (UTC) via a direct physical link to an accurate clock source
    • clock source could be an atomic clock accessed over GPS
  • stratum 2 is an NTP server that synchronizes time with a stratum 1 server over a network
  • each stratum level represents a step away from the accurate clock source over a network link
    • lower stratum servers act as:
      • clients of the stratum 1 servers
      • servers or time sources to lower stratum NTP servers or client hosts
  • most switches and routers can be configured to act as time servers to local client hosts
    • this function is typically performed by network directory servers
    • best to configure each of these devices:
      • with multiple reference time sources (at least 3)
      • establish them as peers to allow NTP algorithm to detect drifting or obviously incorrect time values

• client hosts usually obtain the time by using a modified form of the Simple NTP (SNTP) protocol
  • works over the same port as NTP
  • host that supports only SNTP cannot act as a time source for other hosts
• in Windows, Time Service can be configured by using the w32m command
  • in Linux, ntp package is configured via /etc/ntp.conf

Time Drift

Time Drift is when a system’s clock begins to deviate from the source clock.

• NTP uses two methods to deal with time drift:
  • Slew method
    • if time is off by only a few seconds, NTP adjusts the time a few milliseconds at a time to get it back on track
    • is a slower, methodical method of correcting time
    • risk of problems is much less
  • Slam method
    • if the time is off by more than a few seconds, and slewing will take too long, NTP will hard reset the time
    • is quick and immediate fix,
      • but can cause some programs to not function properly
• if server or host is configured with incorrect time, it may not be able to access network services
  • auth and other security mechanisms will often fail if time is not synced
    • errors are likely to be generic failure or invalid token type messages
• always rule out time sync as an issue early in troubleshooting

Info

if a local stratum 1 server cannot be implemented on the local network,

• the time source can be configured using one or more public NTP server pools
  • e.g., time.google.com, time.windows.com, time.apple.com, time.nist.gov, or pool.ntp.org

Securing NTP

• to mitigate risks from unauthorized time sources or manipulation of sync data,
  • NTP can be protected using TLS
  • Network Time Security (NTS)
    • works over TCP port 4460
    • NTS servers may also support ports 3443 and 4443
