Network Address Translation (NAT)

---

• edge router facilitates communications between the private and public network
• to communicate on the Internet, a host must use an address from a public IP range
  • these are in short supply for IPv4
  • various mechanisms have been devised to reduce the need for public addresses
• Network Address Translation is one mechanism

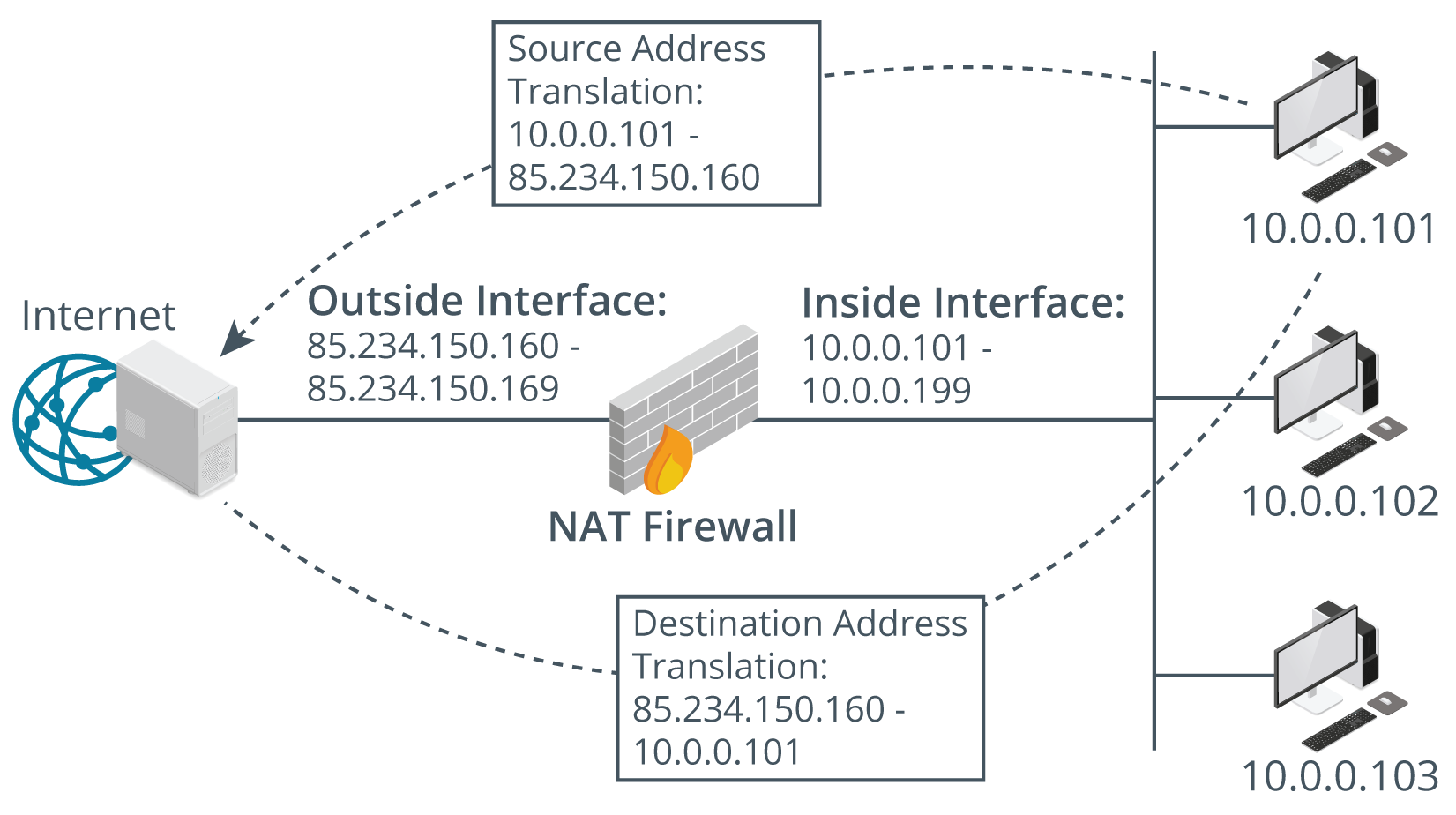

Network Address Translation (NAT) is a routing mechanism that conceals internal addressing schemes from the public Internet by translating between a single public address on the external side of a router and private, non-routable addresses internally.

• primarily deployed as a service translating between a private (local) addressing scheme used by hosts on the LAN and a public (or global) addressing scheme used by an Internet-facing device
• not a security mechanism
  • security is provided by the router/firewall’s ACL

Types

Static NAT

• static NAT configuration
  • a 1:1 mapping is made between the private (inside local) network address and the public (inside global) address
  • if the destination network is using NAT, it is described as having outside global and outside local addressing schemes
  • is useful in scenarios where an inbound connection to a host must be supported
    • E.g., might position a web server behind a firewall running NAT
      • firewall performs 1:1 address translation on the web server’s IP address
      • means that external hosts do not know the true IP address of the web server, but can communicate with it

• a single static mapping is not very useful in most scenarios

Dynamic NAT

• under dynamic NAT
  • NAT device exposes a pool of public IP addresses
  • to support inbound and outbound connections between the private network and the Internet,
    • NAT service builds a table of public to private address mappings
    • each new session creates a new public-private address binding in the table
    • when the session is ended or times out, the binding is released for use by another host
  • allows internal hosts to contact external hosts, but not vice versa
    • external hosts cannot initiate communications with internal hosts
