File Transfer Protocol (FTP)

---

File Transfer Protocol (FTP) is an application protocol used to transfer files between network hosts.

• Most HTTP servers also function as FTP servers
  • FTP services, accounts, and directories may be installed and enabled by default when you install a web server
• FTP is more efficient than file attachments or HTTP file transfer
• has no security mechanisms
  • All authentication and data transfer are communicated as plaintext
• HTTPS-based web services and web applications offer file downloads to end users
  • FTP is still used for administrative upload/download of files to and from servers and appliances
• uses ports 20 and 21
• variants include:
  • Secure File Transfer Protocol (SFTP)
  • FTP Over SSL (FTPS and FTPES)
  • Trivial File Transfer Protocol (TFTP)

Active Versus Passive FTP

• an FTP clients connects to TCP port 21 on an FTP server
  • opens a chosen dynamic client port number ()
• TCP port 21 control port is used to transfer commands and status information
  • not for data transfer
• data transfer operates in 2 modes:

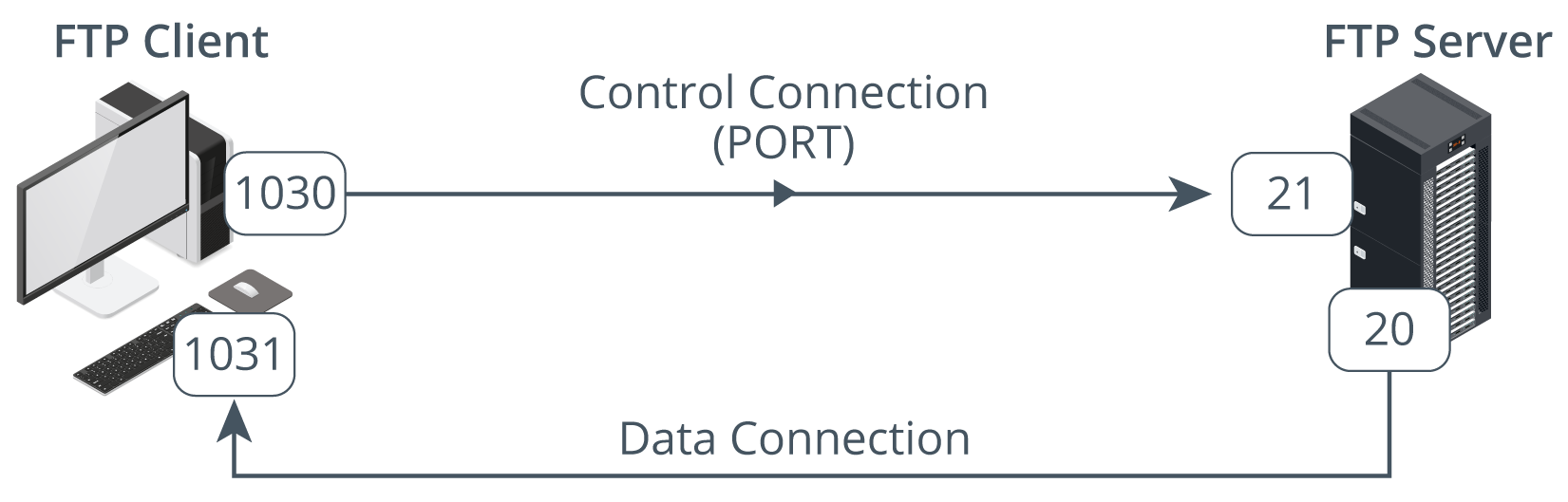

  • active
    • client sends a PORT command specifying its chosen data connection port number (typically )
    • server opens the data connection between the chosen client port and TCP port 20 on the server
    •

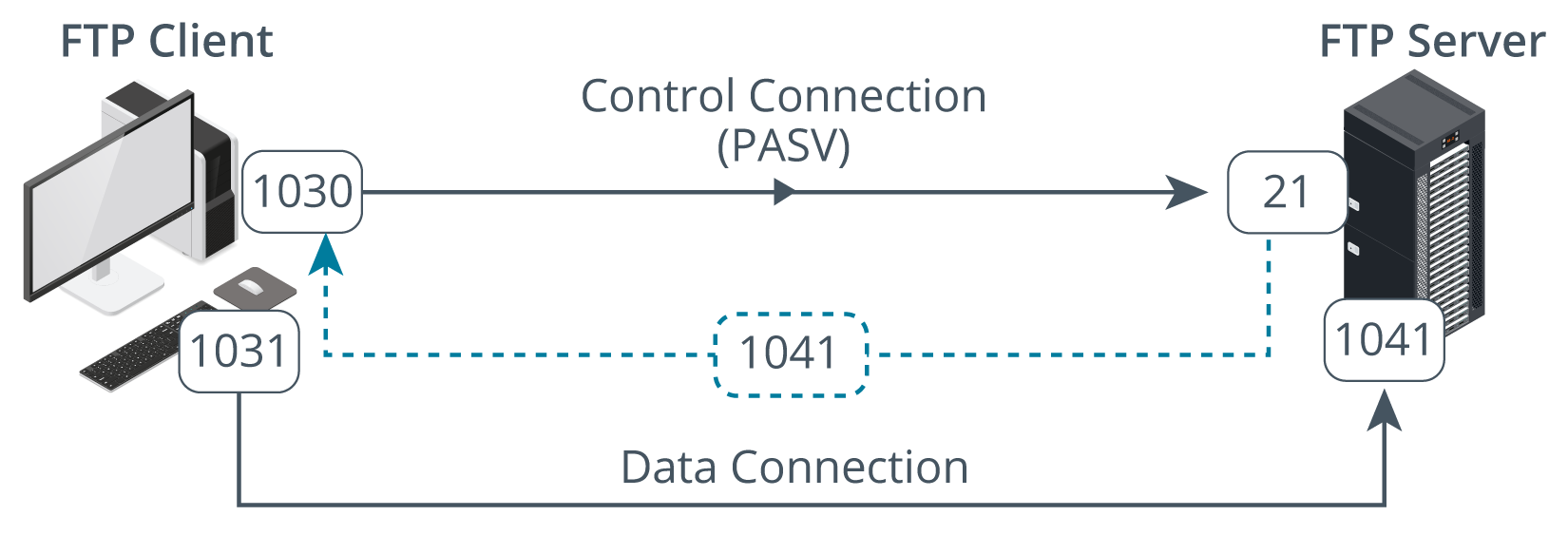

  • passive
    • client opens a data port ()
    • sends the PASV command to the server’s control port
    • server opens a random high port number and sends it to the client using the PORT command
    • client initiates the connection between the two ports
    •
• active FTP poses a configuration problem some firewalls
  • server is initiating the inbound connection, but no way of predicting which port number will be used
  • not all FTP servers and clients can operate in passive mode
    • check that firewalls installed between the client and server can support active FTP (stateful inspection firewalls)

Issues

• another problem is that the contorl connection can remain idle when the data connection is in use
  • means that the connection can be “timed out” by the firewall (or other routing device)
