Database Management

Structured Query Language (SQL)

Structured Query Language (SQL) is the standard query language of relational databases.

  • SQL statements are grouped into five sublanguages

Sublanguages

Data Definition Language (DDL) defines database structure.

CREATE TABLE City (
   ID INTEGER,
   Name VARCHAR(15),
   Population INTEGER
);

Data Query Language (DQL) retrieves data.

SELECT Name
FROM City
WHERE Population > 15000;

Data Manipulation Language (DML) inserts, updates, and deletes data.

INSERT INTO City
VALUES (100, 'Geneva', 206000);

Data Transaction Language (DTL) manages transactions.

START TRANSACTION;

COMMIT;

Data Control Language (DCL) specifies user access to data.

CREATE USER 'jordan';

GRANT ALL ON sakila.actor
TO 'jordan';

Language Elements

  • SQL is built from language elements
    • Literal
      • Explicit value such as a character string or number
      • String literals are enclosed in either single or double quotes
      • e.g., 'Maria', "Hellow world!", 129, 80.3
    • Keyword
      • Word with a special meaning for the language processor
      • defined by the database system
      • e.g., SELECT, INSERT, INTEGER
    • Identifier
      • Name of a database object, such as a column, table, or database
      • specified by the programmer
      • e.g., City, FirstName, Population
    • Expression
      • Sequence of literals, identifiers, and operations that evaluate to a single value
      • e.g., Population > 100 OR Name = 'Tokyo'
    • Comment
      • Text that is ignored by the language processor
      • Single-line comments begin with -- followed by a space
      • Multi-line comments are enclosed in /* and */

Statement

A statement is a complete, executable instruction, ending with a semicolon.

  • consists of one or more clauses
    • Each clause begins with a keyword, followed by additional language elements
  • Line breaks within a statement are ignored
    • good practice is to write each clause on a separate line
  • String literals are always case-sensitive
  • Keywords and identifiers are not case-sensitive

Syntax Definitions

  • MySQL syntax definitions use the following notation:
    • UPPERCASE text indicates SQL keywords
    • lowercase text indicates an identifier or expression provided by the user
      • can be placeholder for a complex construction, defined elsewhere
    • Square brackets [] enclose an optional language element
    • Curly braces {} enclose a series of alternative language elements, separated by vertical bars
    • Ellipsis ... indicates that the preceding language element may be repeated
    • Parentheses () and commas are literal symbols
      • appear in SQL statements exactly as written in the syntax definition

SQL Standard

The SQL standard specifies the official syntax and behavior of SQL statements.

  • published jointly by the:
    • American National Standards Institute (ANSI)
    • International Organization for Standardization (ISO)
  • initially published in 1986
  • latest version has 16 parts
    • 11 are active and 5 were either never released or withdrawn
    • A part is a formal specification of syntax and behavior

Managing Databases

A database system instance is a single executing copy of a database system.

  • personal computers usually run one instance of a database system
  • clouds usually run multiple instances of a database system
  • each instance usually contains multiple system and user databases

Database SQL Commands

CREATE DATABASE DatabaseName creates a new database.

DROP DATABASE DatabaseName deletes a database, including all tables in the database.

USE DatabaseName selects a default database for use in subsequent statements.

The SHOW statement provides information about databases, tables, and columns:

  • SHOW DATABASES lists all databases in the database system instance
  • SHOW TABLES lists all tables in the default database
    • optional clause FROM DatabaseName lists tables in a named database
  • SHOW COLUMNS FROM TableName lists all columns in the TableName table of the default database
  • SHOW CREATE TABLE TableName shows the CREATE TABLE statement for the TableName table of the default database

Tables

  • All data in a relational database is structured in tables:
    • A table has a name, a fixed sequence of columns, and a varying set of rows.
    • A column has a name and a data type.
    • A row is an unnamed sequence of values. Each value corresponds to a column and belongs to the column’s data type.
    • A cell is a single column of a single row.
  • table must have at least one column but any number of rows
  • A table without rows is called an empty table
  • a table is also called a relation

Rules Governing Tables

  1. Exactly one value per cell
    • A cell may not contain multiple values
    • Unknown data is represented with a special NULL value
  2. No duplicate column names
    • Duplicate column names are allowed in different tables, but not in the same table
  3. No duplicate rows
    • No two rows may have identical values in all columns
  4. No row order
    • Rows are not ordered
    • organization of rows on a storage device never affects query results
    • called data independence
      • allows database administrators to improve query performance without affecting results

CREATE TABLE and DROP TABLE Statements

The CREATE TABLE statement creates a new table by specifying the table name, column names, and column data types.

  • fails if the named table already exists
    • to avoid failure, use the optional clause IF NOT EXISTS

The DROP TABLE statement deletes a table, along with all the table’s rows, from a database.

  • fails if the named table does not exist
    • to avoid failure, use the optional clause IF EXISTS

Syntax: CREATE and DROP

CREATE TABLE [IF NOT EXISTS] TableName (

Column1 DATA_TYPE,
Column2 DATA_TYPE,
…
ColumnN DATA_TYPE
);

DROP TABLE [IF EXISTS] TableName;

TRANSPOSE

Transpose is an operation on a table in which rows become columns, and columns become rows.

  • important operation for mathematical matrices, but is not commonly applied to tables

ALTER TABLE Statement

The ALTER TABLE statement adds, deletes, or modifies columns on an existing table.

  • specifies the table name followed by a clause that indicates what should be altered
ALTER TABLE clauseDescriptionSyntax
ADDAdds a columnALTER TABLE TableName
ADD ColumnName DataType;
CHANGEModifies a columnALTER TABLE TableName
CHANGE CurrentColumnName NewColumnName NewDataType;
DROPDeletes a columnALTER TABLE TableName
DROP ColumnName;

Data Types

A data type is a named set of values from which column values are drawn.

Categories

  • Integer
    • represent positive and negative integers
    • multiple types that vary on the number of bytes allocated
      • e.g., SMALLINT
  • Decimal
    • represent numbers with fractional values
    • vary by number of digits after the decimal point and maximum size
    • syntax: DECIMAL(M digits, D digits after decimal)
    • e.g., FLOAT and DECIMAL
  • Character
    • represent textual characters
    • CHAR = fixed string of characters
    • VARCHAR = variable length string specified to a max size
  • Date and time
    • represent date, time, or both
    • some include a time zone or specify a time interval
    • e.g., DATE, TIME, DATETIME, TIMESTAMP
  • Binary
    • store data exactly as the data appears in memory or computer files, bit for bit
    • e.g., BLOB, BINARY, VARBINARY, and IMAGE
  • Spatial
    • store geometric information, such as lines, polygons, and map coordinates
    • e.g., POLYGON, POINT, and GEOMETRY
    • new and vary greatly across database systems
  • Document
    • contain textual data in a structured format such as XML or JSON

MySQL Data Types

  • Most databases allow integer and decimal numbers to be signed or unsigned
  • A signed number may be negative
  • An unsigned number cannot be negative
  • data types vary in storage requirements:
    • Character data types use one or two bytes per character
    • Integer data types use a fixed number of bytes per number
    • Unsigned data types can store larger numbers than the signed version of the same data type
  • To minimize table size,
    • data type with the smallest storage requirements should be used

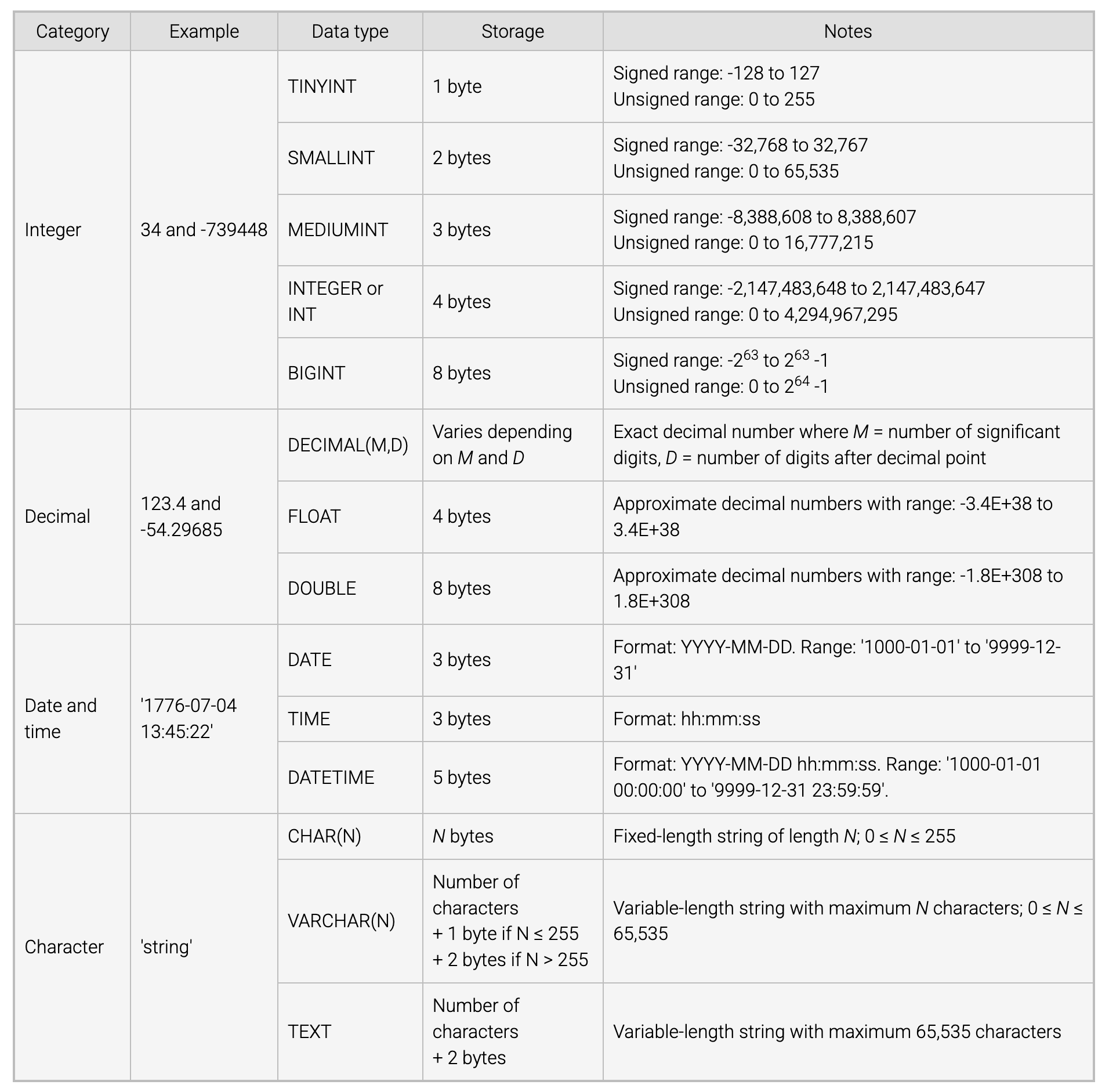

My SQL Data Types

Null Values

NULL is a special value that represents either unknown or inapplicable data.

  • not the same as zero or blank
  • some columns should never contain a NULL
    • NOT NULL constraint prevents a column from having a NULL value
      • follows after the column name and data type in a CREATE TABLE statement

Inserting, Updating, and Deleting Rows

INSERT Statement

The INSERT statement adds rows to a table.

  • has two clauses:
    • INSERT INTO clause names the table and columns where data is to be added
    • VALUES clause specifies the column values to be added
      • may list any number of rows in parentheses to insert multiple rows

Syntax

INSERT [INTO] TableName (Column1, Column2, ...)
VALUES (Value1, Value2, ...);

Example

INSERT INTO Employee (ID, Name, Salary)
VALUES (2538, 'Lisa Ellison', 45000);

Default Values

A default value may be specified for a column.

  • optional DEFAULT keyword and default value follow the column name and data type in a CREATE TABLE statement
  • Columns may be omitted from an INSERT statement
    • When omitted, a column is assigned a NULL value
    • If the NOT NULL constraint is specified on the column, the insert is rejected

Update Statement

The UPDATE statement modifies existing rows in a table.

  • uses the SET clause to specify the new column values
  • optional WHERE clause specifies which rows are updated
    • Omitting the WHERE clause results in all rows being updated

Syntax

UPDATE TableName
SET Column1 = Value1, Column2 = Value2, ...
WHERE condition;

Example

UPDATE Employee
SET Name = 'Tom Snead',
  BirthDate = '2000-03-15'
Where ID = 5384;

Delete Statement

The DELETE statement deletes existing rows in a table.

  • FROM keyword is followed by the table name whose rows are to be deleted
  • optional WHERE clause specifies which rows should be deleted
    • Omitting results in all rows in the table being deleted

Syntax

DELETE FROM TableName
WHERE condition;

Truncate Statement

The TRUNCATE statement deletes all rows from a table.

  • nearly identical to a DELETE statement with no WHERE clause except for minor differences that depend on the database system.
  • Syntax: TRUNCATE TABLE TableName;

Primary Keys

A primary key is a column, or group of columns, used to identify a row.

  • must be unique and not NULL
  • identified by a bullet (●) preceding the primary key in table diagrams
  • is usually left-most column

Composite Primary Keys

A simple primary key consists of a single column.

A composite primary key consists of multiple columns.

  • must be:
    • Unique
    • Not NULL
    • Minimal
      • All primary key columns are necessary for uniqueness
  • enclosed in parentheses
    • e.g., (ColumnA, ColumnB)

Primary Key Constraint

The primary key constraint in a CREATE TABLE statement names the table’s primary key.

  • ensures that a column or group of columns is always unique and non-null
  • primary key column definition usually appears first
    • followed by other column definitions and the primary key constraint

Auto-increment Columns

An auto-increment column is a numeric column that is assigned an automatically incrementing value when a new row is inserted.

  • AUTO_INCREMENT keyword defines an auto-increment column
    • follows the column’s data type in a CREATE TABLE statement
  • Integer primary keys are commonly implemented as auto-increment columns
  • in MySQL, may be applied only to primary key columns

Foreign Keys

A foreign key is a column, or group of columns, that refer to a primary key.

  • data types of the foreign and primary keys must be the same
  • does not have to be unique
  • values may be NULL
  • value that is not NULL must match some value of the referenced primary key

Composite Foreign Keys

  • foreign key that refers to a composite primary key must also be composite
  • All columns of a composite foreign key value must either:
    • match some primary key value
    • or be NULL

Special Cases

  • Multiple foreign keys may refer to the same primary key
  • foreign key may refer to the primary key of the same table

Foreign Key Constraint

  • foreign key constraint is created with a foreign key clause in the CREATE TABLE statement
  • syntax: FOREIGN KEY (ColumnName) REFERENCES TableName (ColumnName)
  • usually follows all column definitions, but can be created at any point in the CREATE TABLE statement

Syntax

CREATE TABLE TableName (

…
FOREIGN KEY (ColumnName) REFERENCES TableName (ColumnName),
…
);

Referential Integrity

Referential integrity is a relational rule that requires foreign key values are either fully NULL or match some primary key value.

  • fully NULL means all columns are NULL
  • cannot be partially NULL
  • relational databases must always obey referential integrity

Referential Integrity Violations

  • 4 ways to violate referential integrity:
    1. A primary key is updated
    2. A foreign key is updated
    3. A row containing a primary key is deleted
    4. A row containing a foreign key is inserted
  • primary key inserts and foreign key deletes never violate referential integrity

Referential Integrity Actions

  • referential integrity violations can be corrected manually or automatically
  • databases automatically correct referential integrity violations in 4 ways:
    • RESTRICT rejects an insert, update, or delete that violates referential integrity
    • SET NULL sets invalid foreign keys to NULL
    • SET DEFAULT sets invalid foreign keys to the foreign key default value
    • CASCADE propagates primary key changes to foreign keys
      • if a primary key is deleted, rows containing matching foreign keys are deleted
      • if a primary key is updated, matching foreign keys are updated to the same value

ON UPDATE and ON DELETE Clauses

  • MySQL only supports RESTRICT for foreign key inserts and updates
  • MySQL supports all 4 actions for primary key updates and deletes
    • actions are specified in optional ON UPDATE and ON DELETE clauses of the FOREIGN KEY constraint
      • followed by one of the 4 actions
  • MySQL has limitations on primary key updates and deletes:
    • RESTRICT is applied when the ON UPDATE or ON DELETE clause is omitted
    • SET NULL cannot be used when a foreign key is not allowed NULL values
    • SET DEFAULT is not supported in some MySQL configurations

Exmaple

CREATE TABLE Department (
   Code TINYINT UNSIGNED,
   Name VARCHAR(20),
   ManagerID SMALLINT UNSIGNED,
   PRIMARY KEY (Code),
   FOREIGN KEY (ManagerID) REFERENCES Employee(ID)
      ON DELETE SET NULL
      ON UPDATE CASCADE
);

Constraints

A constraint is a rule that governs allowable values in a database.

  • are based on relational and business rules
  • implemented with special keywords in a CREATE TABLE statement
  • database auto-rejects statements that violate a constraint
  • e.g.,
    • NOT NULL
    • DEFAULT
    • PRIMARY KEY
    • FOREIGN KEY

Column and Table Constraints

A column constraint govern values in a single column.

  • appears after the column name and data type in a CREATE TABLE statement
  • e.g., NOT NULL

A table constraint governs values in one or more columns.

  • appears in a separate clause of a CREATE TABLE statement

  • e.g., FOREIGN KEY

  • some constraints can be either column or table constraints

    • e.g., PRIMARY KEY can appear either in the column declaration or a separate CREATE TABLE clause
      • on a composite column, must be defined as a table constraint

UNIQUE Constraint

The UNIQUE constraint ensures that values in a column, or group of columns, are unique.

  • when applied to a single column,
    • may appear either in the column declaration or a separate clause
  • when applied to a group of columns,
    • is a table constraint and must appear in a separate column
  • MySQL creates an index for each UNIQUE constraint
    • index stores the values of the unique column in sorted order
    • when new values are inserted or updated,
      • MySQL searches the index to quickly determine if the new value is unique

CHECK Constraint

The CHECK constraint specifies an expression on one or more columns of a table.

  • constraint is violated when the expression is FALSE
  • satisfies when the expression is TRUE or NULL
  • when expression contains one column,
    • CHECK may appear either in the column declaration or a separate clause
  • when expression contains multiple columns,
    • is a table constraint and must be a separate clause

CHECK Constraint

CREATE TABLE Department (

Code TINYINT UNSIGNED,
Name VARCHAR(20),
ManagerID SMALLINT,
AdminAssistID SMALLINT,
Size VARCHAR(6) CHECK (Size IN (‘small’, ‘medium’, ‘large’)),
PRIMARY KEY (Code),
CHECK (ManagerID >= 1000 AND ManagerID <> AdminAssistID)
);

Constraint Names

The CONSTRAINT keyword is used to name a table constraint.

  • syntax: CONSTRAINT name declaration
    • if no name provided, database generates a default name
  • names appear in error messages when violated
  • most column constraints cannot be named
    • except for CHECK

Adding and Dropping Constraints

Add or drop constraints with the ALTER TABLE TableName followed by ADD, DROP, or CHANGE clause.

  • unnamed constraints are added or dropped with a CHANGE clause:
    • CHANGE CurrentColumnName NewColumnName NewDataType [ConstraintDeclaration]
  • named constraints are added with an ADD clause:
    • ADD [CONSTRAINT ConstraintName] PRIMARY KEY (Column1, Columne2 ...)
    • ADD [CONSTRAINT ConstraintName] FOREIGN KEY (Column1, Column2 ...) REFERENCES TableName (Column)
    • ADD [CONSTRAINT ConstraintName] UNIQUE (Column1, Column2 ...)
    • ADD [CONSTRAINT ConstraintName] CHECK (expression)
  • named constraints are dropped with a DROP clause:
    • DROP PRIMARY KEY
    • DROP FOREIGN KEY ConstraintName
    • DROP INDEX ConstraintName (drops UNIQUE constraints)
    • DROP CHECK ConstraintName
    • DROP CONSTRAINT ConstraintName (drops any named constraint)
  • dropping a table fails when a foreign key constraint refers to the table’s primary key
    • before dropping the table, the foreign key constraint or the foreign key table must be dropped

Graph View

Backlinks
