Cyber Kill Chain

---

• there are several methods to describe the process of an attack on systems security
  • called a kill chain

A kill chain is a model developed by Lockheed Martin that describes the stages by which a threat actor progresses to a network intrusion.

• from the influential white paper Intelligence-Driven Computer Network Defense
  • commissioned by Lockheed Martin

Weakness

• contemporarily critiqued for not accurately reflecting the chain of events in modern attack campaigns
  • focuses too much on perimeter security
• modern models introduce:
  • iterative internal reconnaissance
  • lateral movement
  • privilege escalation
  • data collection
• once an attacker has achieved initial objective, they may
  • maintain access
  • seek out anti-forensics

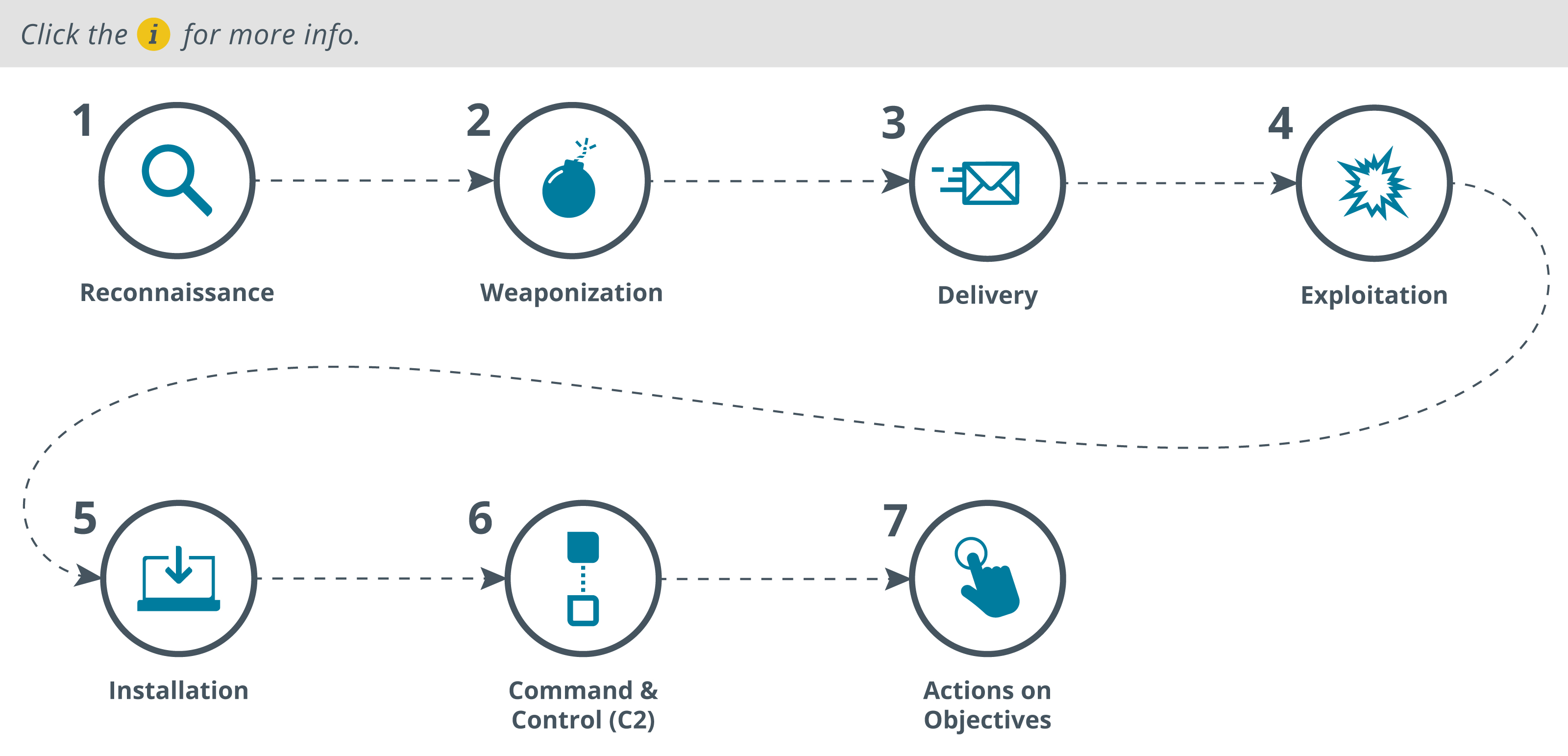

Phases

1. Reconnaissance
   • attacker discovers information about the target and technologies in place
   • may use passive information gathering and active scanning of target network
   • desired outcome is identifying one or more potential exploitable vulnerabilities
2. Weaponization
   • attacker identifies a method by which identified vulnerabilities can be exploited
     • often through weaponized code
       • carefully crafted scripts
       • custom malware binaries
       • compromised website
       • social engineering
       • etc.
3. Delivery
   • attacker identifies a vector to transmit the weaponized code to the target environment
   • e.g., via email or USB
4. Exploitation
   • results in weaponized code running on the target system
   • e.g.,
     • phishing email tricks user into running the code
     • drive-by download executes on a vulnerable system without user interaction
5. Installation
   • this mechanism enables the weaponized code to run a remote access tool and achieve persistence on the target system
6. Command and Control (C&C)
   • the weaponized code establishes a reliable channel to a remote server used to manage the session
   • downloads additional tools to help advance the attack
7. Actions on Objective
   • attacker uses the access they have achieved to covertly collect information from target systems and transfer it to a remote system
   • acts on any other objectives they have

Kill Chain Analysis

• kill chain analysis can identify a defensive course of action to counter the progression of an attack
• need to understand the kill chain phases to understand where the attack is at
• kill chain shapes analysis techniques
  • different approaches are suited to different stages
• vital to identify suspicious activity as early as possible
