Complex Queries

---

Selecting Rows

Operators

An operator is a symbol that computes a value from one or more other values, called operands.

• arithmetic operators compute numeric values from numeric operands
• comparison operators computer logical values TRUE or FALSE
  • may be numeric, character, or other data types
• logical operators compute logical values from logical operands
• A unary operator has one operand
• A binary operator has two operands
  • most operands are binary
• logical operator is not unary
• arithmetic operator can be unary or binary

Common Operators

Type	Operator	Description	Example	Value
Arithmetic	+	Adds two numeric values	4 + 3	7
Arithmetic	- (unary)	Reverses the sign of one numeric value	-(-2)	2
Arithmetic	- (binary)	Subtracts one numeric value from another	11 - 5	6
Arithmetic	*	Multiplies two numeric values	3 * 5	15
Arithmetic	/	Divides one numeric value by another	4 / 2	2
Arithmetic	% (modulo)	Divides one numeric value by another and returns the integer remainder	5 % 2	1
Comparison	=	Compares two values for equality	1 = 2	FALSE
Comparison	!= <>	Compares two values for inequality	1 != 2 1 <> 2	TRUE
Comparison	<	Compares two values with <	2 < 2	FALSE
Comparison	<=	Compares two values with ≤	2 <= 2	TRUE
Comparison	>	Compares two values with >	'2019-08-13' > '2021-08-13'	FALSE
Comparison	>=	Compares two values with ≥	'apple' >= 'banana'	FALSE
Logical	AND	Returns TRUE only when both values are TRUE	TRUE AND FALSE	FALSE
Logical	OR	Returns FALSE only when both values are FALSE	TRUE OR FALSE	TRUE
Logical	NOT	Reverses a logical value	NOT FALSE	TRUE

Expressions

An expression is a string of operators, operands, and parentheses that evaluates to a single value.

• operands can be column names or fixed values
• value can be any data type
• e.g., Salary > 34000 AND Department = 'Marketing'
• operators are evaluated in order of operator precedence
• expressions may evaluate to NULL

Operator Precedence

Precedence	Operators
1	- (unary)
2	^
3	*     /     %
4	+     - (binary)
5	=     !=     <     >     <=     >=
6	NOT
7	AND
8	OR

SELECT Statement

The SELECT statement selects rows from a table.

• has a select clause and a from clause
  • FROM clause specifies the table from which rows are selected
  • SELECT clause specifies expressions separated by commas
• returns a set of rows, called the results table

Syntax

-- SELECT with expressions

SELECT Expression1, Expression2, …
FROM TableName;

— SELECT with column names
SELECT Column1, Column2, …
FROM TableName;

— SELECT with asterisk
SELECT *
FROM TableName;

LIMIT Clause

MySQL has a LIMIT clause that limits the number of rows returned by a SELECT statement.

Example

SELECT *
FROM City
LIMIT 100;

WHERE Clause

A condition is an expression that evaluates to a logical value.

• A SELECT statement has an optional WHERE clause that specifies a condition for selecting rows
  • follows the FROM clause

Syntax

SELECT Expression1, Expression2, ...
FROM TableName
WHERE Condition;

Null Arithmetic and Comparisons

• when operators have a NULL operand,
  • the result is NULL
• when a WHERE clause evaluates to NULL, row is not selected

IS NULL Operator

• comparison operators cannot be used to select NULL values
• use IS NULL and IS NOT NULL operators to select NULL values

NULL Logic

• Expressions can be TRUE, FALSE, or NULL
• NULL indicates the value of the expression is uncertain
• value of logical expressions is contained in truth tables

MySQL Truth Table

x	y	x AND y	x OR y
TRUE	NULL	NULL	TRUE
NULL	TRUE	NULL	TRUE
FALSE	NULL	FALSE	NULL
NULL	FALSE	FALSE	NULL
NULL	NULL	NULL	NULL
—

x	NOT x
NULL	NULL

Special Operators and Clauses

IN Operator

The IN operator is used in a WHERE clause to determine if a value matches one of several values.

Example

SELECT *
FROM CountryLanguage
WHERE Language IN ('Dutch', 'Kongo', 'Albanian');

BETWEEN Operator

The BETWEEN operator provides an alternative way to determine if a value is between two other values.

• Syntax: value BETWEEN minValue AND maxValue
• is equivalent to value >= minValue AND value <= maxValue
• is valid for CHAR and VARCHAR data types

LIKE Operator

The LIKE operator, when used in a WHERE clause, matches text against a pattern using the two wildcard characters % and _.

• % matches any number of characters
  • e.g., LIKE 'L%t' matches “Lt”, “Lot”, “Lift”, and “Lol cat”
• _ matches exactly one character
  • e.g., LIKE 'L_t' matches “Lot” and “Lit” but not “Lt” and “Loot”
• performs:
  • case-insensitive pattern matching by default
  • case-sensitive pattern matching if followed by the BINARY keyword
• can escape the wildcard characters with \ (backslash)
  • LIKE 'a\%' matches a%

DISTINCT Clause

The DISTINCT keyword is used with a SELECT statement to return only unique or ‘distinct’ values.

Example

SELECT DISTINCT Language
FROM CountryLanguage
WHERE IsOfficial = 'F';

ORDER BY Clause

The ORDER BY clause orders selected rows by one or more columns in ascending (alphabetic or increasing) order.

• DESC keyword orders rows in descending order
• order by multiple columns by listing with commas

Example

SELECT *
FROM CountryLanguage
ORDER BY Language [DESC]; -- brackets are optional

Simple Functions

A function operates on an expression enclosed in parentheses, called an argument, and returns a value.

• can have multiple arguments, separated by commas
• operates on and evaluates to specific data types
• can appear in SELECT clause or WHERE clause

Numeric Functions

• numeric functions operate on, and evaluate to, integer and decimal data types

Common Numeric Functions

Function	Description	Example
ABS(n)	Returns the absolute value of n	SELECT ABS(-5); returns 5
LOG(n)	Returns the natural logarithm of n	SELECT LOG(10); returns 2.302585092994046
POW(x, y)	Returns x to the power of y	SELECT POW(2, 3); returns 8
RAND()	Returns a random number between 0 (inclusive) and 1 (exclusive)	SELECT RAND(); returns 0.11831825703225868
ROUND(n, d)	Returns n rounded to d decimal places	SELECT ROUND(16.25, 1); returns 16.3
SQRT(n)	Returns the square root of n	SELECT SQRT(25); returns 5

String Functions

String functions manipulate string values.

Common String Functions

Function	Description	Example
CONCAT(s1, s2, …)	Returns the string that results from concatenating the string arguments	SELECT CONCAT('Dis', 'en', 'gage'); returns ‘Disengage’
LOWER(s)	Returns the lowercase s	SELECT LOWER('MySQL'); returns ‘mysql’
REPLACE(s, from, to)	Returns the string s with all occurrences of from replaced with to	SELECT REPLACE('This and that', 'and', 'or'); returns ‘This or that’
SUBSTRING(s, pos, len)	Returns the substring from s that starts at position pos and has length len	SELECT SUBSTRING('Boomerang', 1, 4); returns ‘Boom’
TRIM(s)	Returns the string s without leading and trailing spaces	SELECT TRIM(' test '); returns ‘test’
UPPER(s)	Returns the uppercase s	SELECT UPPER('mysql'); returns ‘MYSQL’

Date and Time Functions

Date and time functions operate on DATE, TIME, and DATETIME data types.

Common Date and Time Functions

Function	Description	Example
CURDATE() CURTIME() NOW()	Returns the current date, time, or date and time in 'YYYY-MM-DD', 'HH:MM:SS', or 'YYYY-MM-DD HH:MM:SS' format	SELECT CURDATE(); returns ‘2019-01-25’ SELECT CURTIME(); returns ‘21:05:44’ SELECT NOW(); returns ‘2019-01-25 21:05:44’
DATE(expr) TIME(expr)	Extracts the date or time from a date or datetime expression expr	SELECT DATE('2013-03-25 22:11:45'); returns ‘2013-03-25’ SELECT TIME('2013-03-25 22:11:45'); returns ‘22:11:45’
DAY(d) MONTH(d) YEAR(d)	Returns the day, month, or year from date d	SELECT DAY('2016-10-25'); returns 25 SELECT MONTH('2016-10-25'); returns 10 SELECT YEAR('2016-10-25'); returns 2016
HOUR(t) MINUTE(t) SECOND(t)	Returns the hour, minute, or second from time t	SELECT HOUR('22:11:45'); returns 22 SELECT MINUTE('22:11:45'); returns 11 SELECT SECOND('22:11:45'); returns 45
DATEDIFF(expr1, expr2) TIMEDIFF(expr1, expr2)	Returns expr1 - expr2 in number of days or time values, given expr1 and expr2 are date, time, or datetime values	SELECT DATEDIFF('2013-03-10', '2013-03-04'); returns 6 SELECT TIMEDIFF('10:00:00', '09:45:30'); returns 00:14:30

Aggregate Functions

An aggregate function processes values from a set of rows and returns a summary value.

• common ones:
  • COUNT() counts the number of rows in the set
  • MIN() finds the minimum value in the set
  • MAX() finds the maximum value in the set
  • SUM() sums all the values in the set
  • AVG() computes the arithmetic mean of all the values in the set
• appear in a SELECT clause and process all rows that satisfy the WHERE clause condition

GROUP BY Clause

• GROUP BY clause consists of
  • GROUP BY keyword
  • and one or more columns
• query computes the aggregate function separately, and returns one row, for each group
• appears between the WHERE clause, if any, and the ORDER BY clause
• SELECT clause may not contain columns with more than one value per group

HAVING Clause

The HAVING clause is used with the GROUP BY clause to filter group results.

• optional
• follows GROUP BY clause
• precedes ORDER BY clause

Aggregate Functions and NULL Values

• aggregate functions ignore NULL values
• arithmetic operators return NULL when either operand is NULL
  • so may produce unexpected results with aggregate functions
  • e.g.,
    • SUM(Salary) + SUM(Bonus) ≠ SUM(Salary + Bonus)
    • assuming some null values

Join Queries

A join is a SELECT statement that combines data from two tables, know as the left table and right table, into a single result.

• combined by comparing columns from the left and right tables
  • usually using = operator
  • columns must have comparable data types
• can compare any columns, but is usually a foreign key and a primary key

A natural join combines two tables by automatically matching columns that share the same name and have compatible data types.

• eliminates duplicate columns from the result set
  • producing a streamlined table that contains only one copy of each matched column

Prefixes and Aliases

• when duplicate column names appear in a join query, the names must be distinguished with a prefix
  • is the table name followed by a period
    • e.g., TableName.ColumnName
• to simplify prefixes, column names can be replaced with an alias
  • follows the column name, separated by an optional AS keyword
    • SELECT ColumnName AS alias

Example

SELECT Department.Name AS Team,
       Employee.Name AS Supervisor
FROM Department, Employee
WHERE Manager = ID;

Inner and Full Joins

A join clause determines how a join query handles unmatched rows.

• 2 common join clauses:
  • INNER JOIN
    • selects only matching left and right table rows
  • FULL JOIN
    • selects all left and right table rows, regardless of match
    • unmatched left table rows appear with NULL values in right table columns and vice versa
• join clause appears between FROM clause and ON clause
  • FROM clause specifies left table
  • INNER JOIN or FULL JOIN specifies right table
  • ON clause specifies the join columns
  • optional WHERE clause follows ON
• MySQL does not support FULL JOIN

Example

SELECT Department.Name AS Team,
		Employee.Name AS Supervisor
FROM Department
INNER JOIN Employee
ON Manager = ID

Left and Right Joins

LEFT JOIN selects all left table rows, but only matching right table rows.

RIGHT JOIN selects all right table rows, but only matching left table rows.

An outer join is any join that selects unmatched rows.

• includes left, right, and full joins

Alternative Join Queries

• inner joins can be written without a JOIN keyword
• outer joins can be written with a UNION keyword instead

UNION combines the results of two SELECT clauses into one result table.

• for a left join,
  • one SELECT returns matching rows
  • another returns unmatched left table rows
• for a right join,
  • one SELECT returns matching rows
  • another returns unmatched right table rows
• for a full join,
  • three SELECT clauses are necessary
  • one returns matching rows
  • another returns unmatched left table rows
  • a third return unmatched right table rows
  • the three results are merged with two UNION keywords
• using JOIN is better practice than UNION
  • because union is more complex and difficult to understand

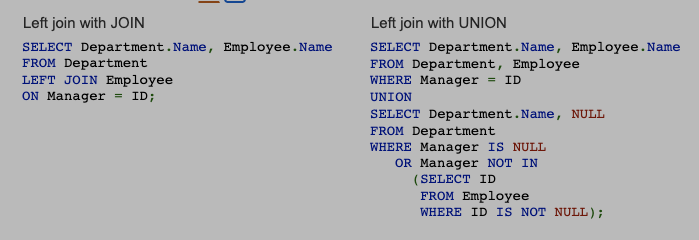

Example

Equijoins, Self-Joins, and Cross-Joins

Equijoins

An equijoin compares columns of two tables with the = operator.

• most joins are equijoins
• non-equijoin compares columns with an operator other than =

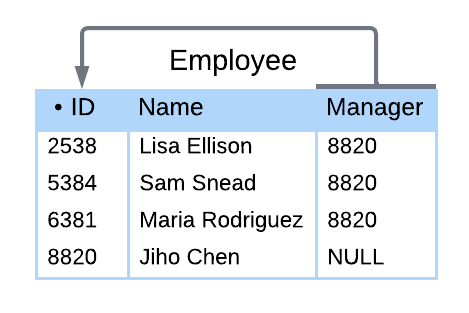

Self-Join

A self-join joins a table to itself.

• can compare any columns of a table,
  • as long as the columns have comparable data types
• aliases are necessary to distinguish left and right tables

Example

• A is the left table’s alias, and B is the right table’s alias

• A.Name is the Name column of the left table, representing the employee

• B.Name is the Name column of the right table, representing the employee’s manager

• result shows employees along with each employee’s manager



SELECT A.Name, B.Name
FROM Employee A
INNER JOIN Employee B
ON B.ID = A.Manager;

Result

A.Name	B.Name
Lisa Ellison	Jiho Chen
Sam Snead	Jiho Chen
Maria Rodriguez	Jiho Chen

Cross-Joins

A cross-join combines two tables without comparing columns.

• uses a CROSS JOIN clause without an ON clause
• As a result, all possible combinations of rows from both tables appear in the result

Example

IPhone

Model	Price
X	1100
XR	800

Storage

Gigabytes	Price
64	0
128	100
256	200

SELECT Model, Gigabytes, IPhone.Price + Storage.Price
FROM IPhone
CROSS JOIN Storage;

Result

Model	Gigabytes	IPhone.Price + Storage.Price
X	64	1100
XR	64	800
X	128	1200
XR	128	900
X	256	1300
XR	256	1000

View Tables

Creating Views

Views restructure table columns and data types without changes to the underlying database design.

• may want to have different views for different departments/roles

A view table is a table name associated with a SELECT statement, called the view query.

The CREATE VIEW statement creates a view table and specifies the view name, query, and, optionally, column names.

• If column names are not specified,
  • column names are the same as in the view query result table

CREATE VIEW Statement Syntax

CREATE VIEW ViewName [ ( Column1, Column2, ... ) ]
AS SelectStatement;

Querying Views

Base tables are always source tables, created as tables rather than as views

A table specified in the view query’s FROM clause is called a base table.

• view table data is not normally stored
  • instead, when a view table appears in a SQL statement
  • the view query is merged with the SQL query
  • database executes the merged query against base tables

A materialized view is a view for which data is stored at all times.

• Whenever a base table changes,
  • the corresponding view tables can also change,
  • so materialized views must be refreshed
• To avoid the overhead of refreshing views,
  • MySQL and many other databases do not support materialized views

Advantages of Views

• Protect sensitive data
  • view can exclude sensitive columns but include all other columns
  • Authorizing users and programmers to access the view but not the underlying table protects the sensitive data
• Save complex queries
  • can reference the view without writing the SELECT statement
• Save optimized queries

Inserting, Updating, and Deleting Views

Using views in INSERT, UPDATE, and DELETE statements is problematic:

• Primary keys
  • If a base table primary key does not appear in a view,
    • an insert to the view generates a NULL primary key value
  • primary keys may not be NULL, so the insert is not allowed
• Aggregate values
  • A view query may contain aggregate functions
  • One aggregate value corresponds to many base table values
  • An update or insert to the view may create a new aggregate value,
    • which must be converted to many base table values
  • The conversion is undefined,
    • so the insert or update is not allowed
• Join views
  • In a join view, foreign keys of one base table may match primary keys of another
  • A delete from a view might delete
    • foreign key rows only,
    • or primary key rows only,
    • or both the primary and foreign key rows
  • The effect of the join view delete is undefined and therefore not allowed

WITH CHECK OPTION Clause

When WITH CHECK OPTION is specified, the database rejects inserts and updates that do not satisfy the view query WHERE clause.

• Instead, the database generates an error message that explains the violation

Background

• Databases that allow view updates face one particularly bothersome behavior
• A view insert or update may create a row that does not satisfy the view query WHERE clause
• In this case, the inserted or updated row does not appear in the view table
•  From the perspective of the database user, the insert or update appears to fail even though the base tables have changed

WITH CHECK OPTION Syntax

CREATE VIEW ViewName [ ( Column1, Column2, ... ) ]
AS SelectStatement
[ WITH CHECK OPTION ];
